NTools MANO 10

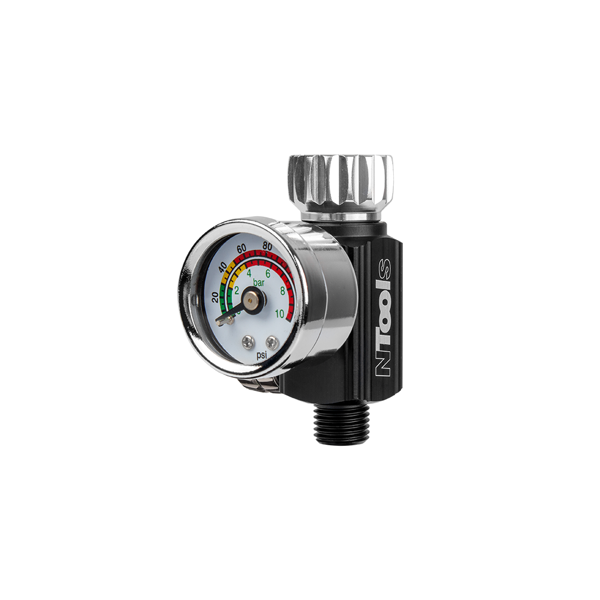

Air regulator with pressure gauge

Compressed air throttle regulator with a mechanical dial gauge for setting the working pressure value of the spray gun. Transparent working disc shield made of glass.

Specifications:

• Nominal size of the gauge is 32 mm.
• The gauge has a measuring range of 10 bar.
• Max. operating pressure 7,5 bar.
• Scale markers every 0.5 bar.
• Smooth pressure adjustment depending on flow - YES.
• Pressure gauge body - aluminium.
• Regulator body - aluminium.
• The spray gun connection features a 1/4" F-BSP female cylindrical thread.
• The quick coupling plug connection features a 1/4" M-BSP male cylindrical thread.

ATTENTION!

Do not immerse in solvent!

Do not place in automatic spray gun washers!
